3870EAP Tuttnauer Automatic Sterilizer

Description

3870EAP TUTTNAUER AUTOMATIC STERILIZER

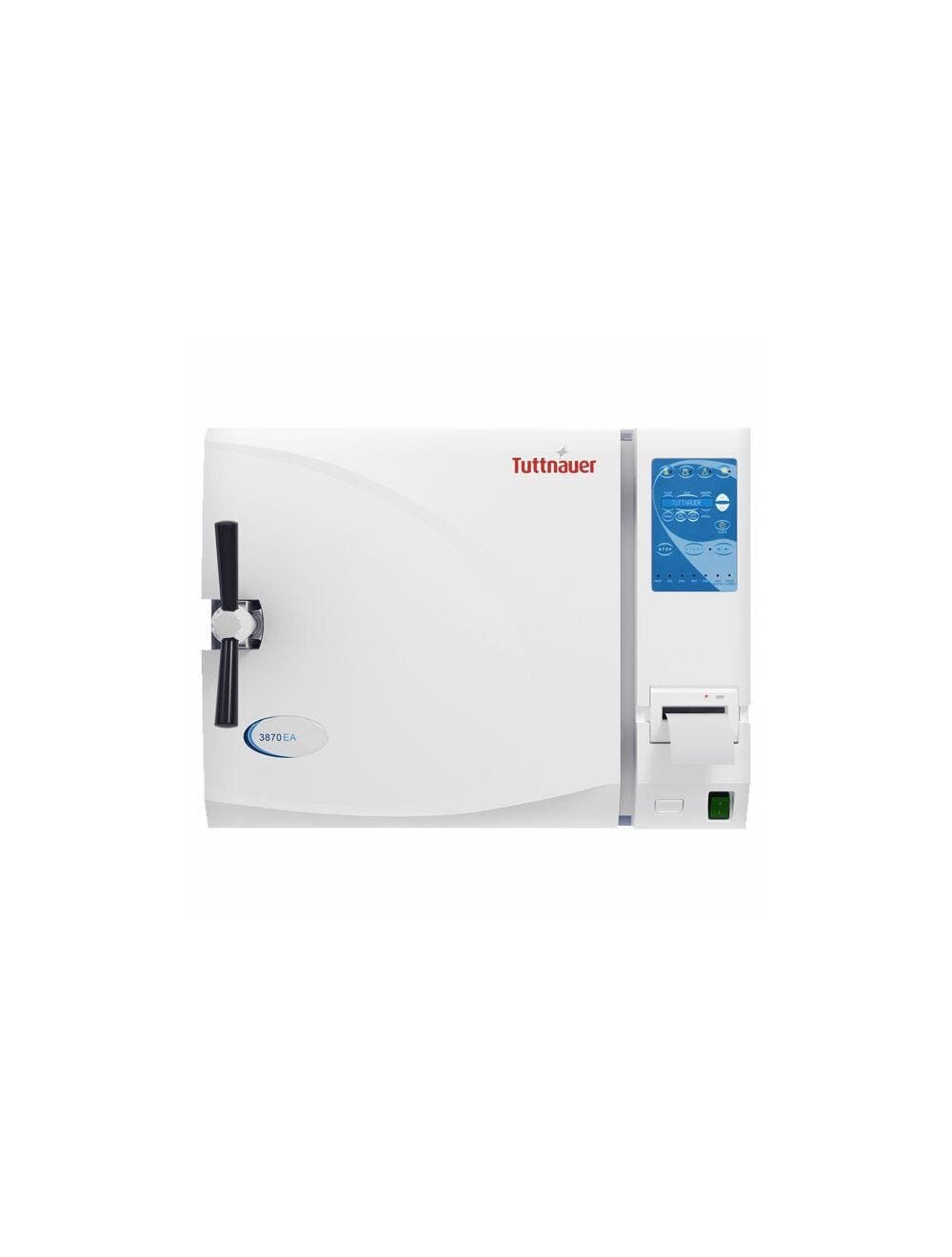

Tuttnauer 3870EA Fully Automatic Autoclave With Printer

If you are looking for a simple, affordable solution in a large chamber autoclave, the Tuttnauer 3870EA, Tuttnauer’s largest automatic table top autoclave, is the answer. The 15′ x 30′ chamber accommodates those longer instruments and cannulas that won’t fit in any other tabletop machines. The Tuttnauer 3870EA is unique in that it plugs into a dedicated 230V outlet, and fill the reservoir tank with distilled water. There is no need for expensive hard wiring of electrical and plumbing hookups, and there is no need for a costly yearly maintenance contract.

The 3870EA is easy to use and easy to maintain. You’ll need a new Hepa filter and a new door gasket every year. Be sure to perform the in-house maintenance, use chamber-brite regularly, and this autoclave will give you years of service at a minimal cost. As an authorized Tuttnauer dealer since 1992, we have witnessed the 3870EA gain rapid popularity among surgery centers, specialty medical offices, veterinary practices, labs, and other like facilities.

Features and Benefits

• Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches
• Hepa filter 0.2 µm air filter (replaceable)
• Rapid cycles optimize the availability of ready-to-use sterile instruments

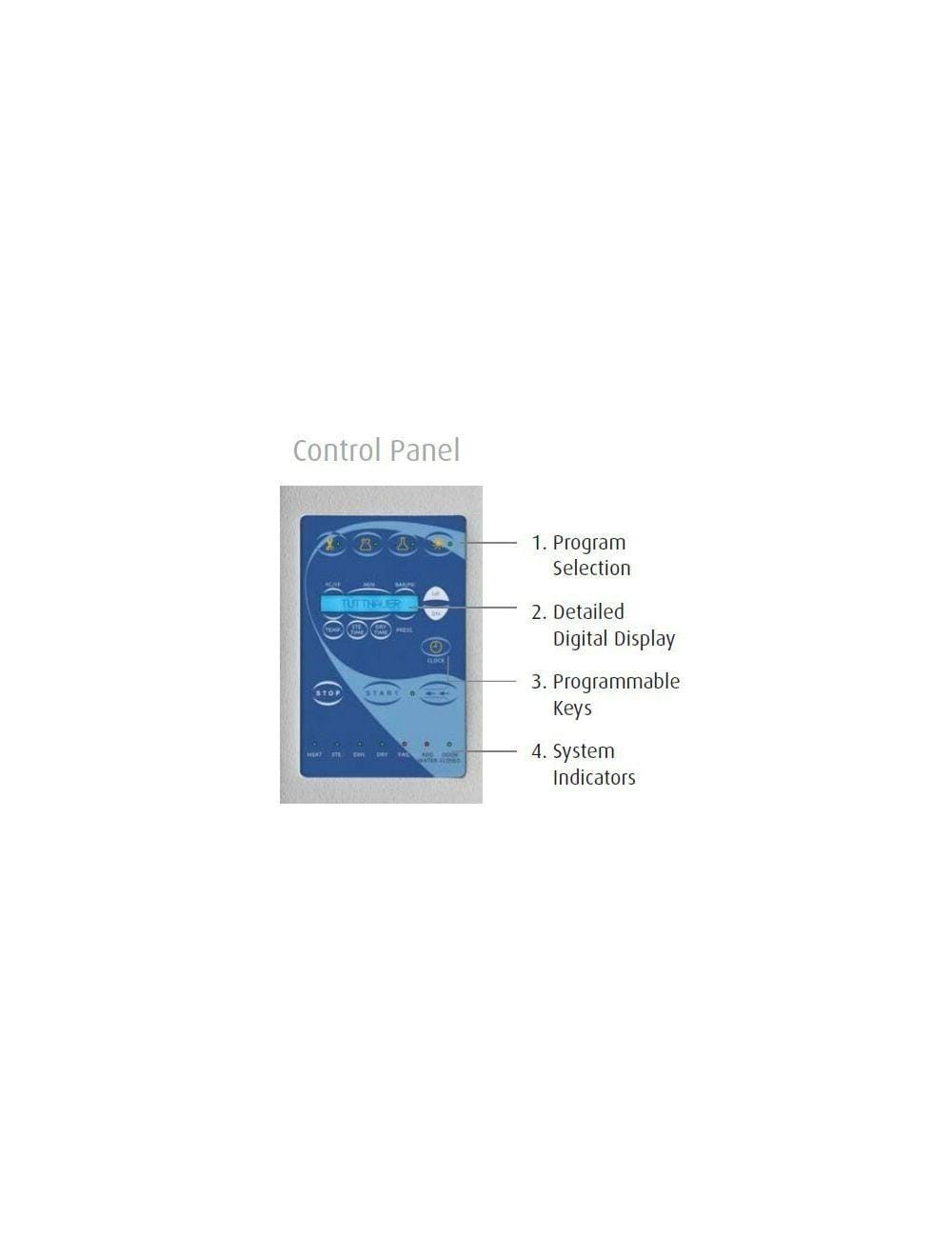

• Easy-to-use, single touch control system increases productivity
• 3 Pre-set sterilization programs
• Program and customize cycle parameters to suit your needs and maximize flexibility

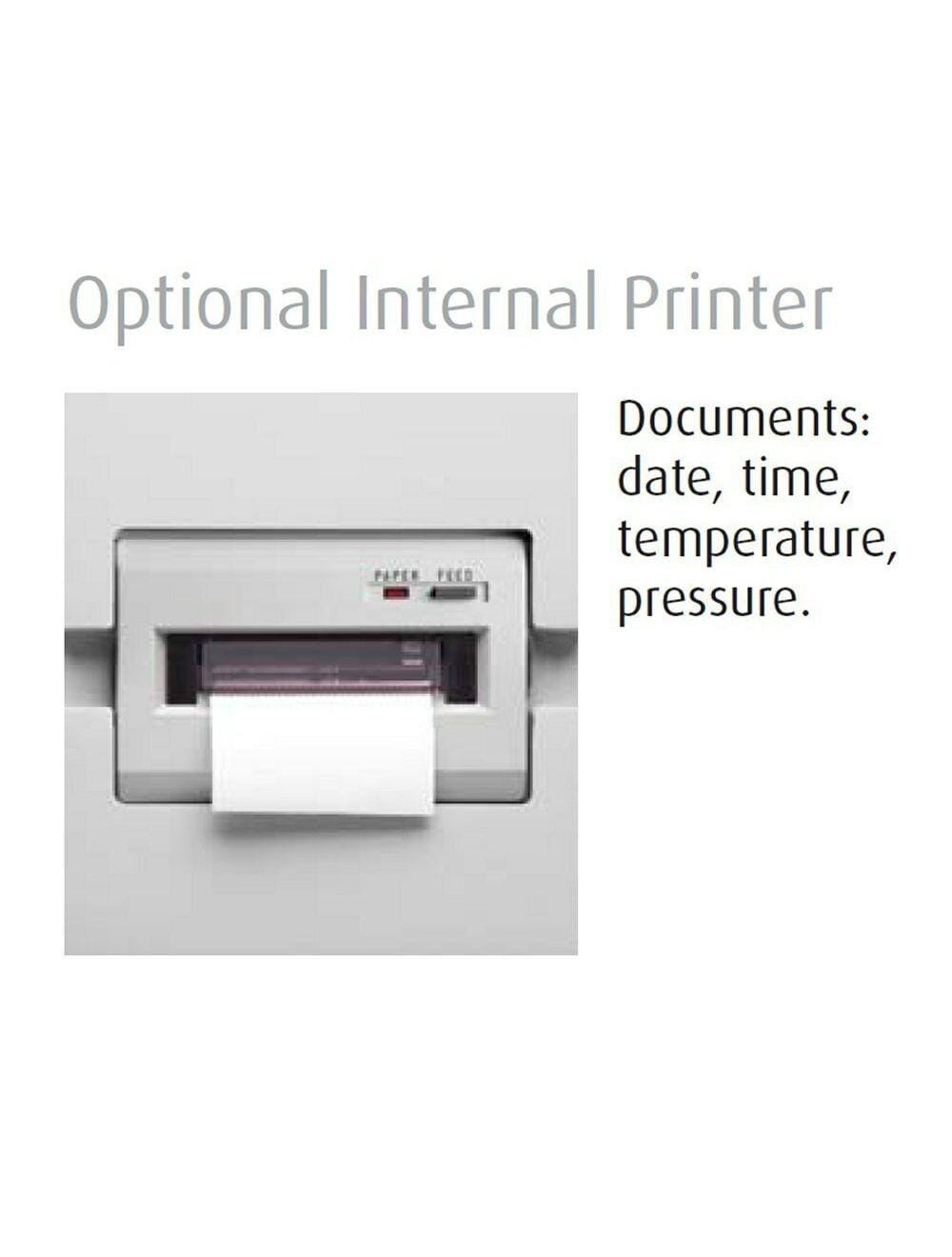

• ted printer for documentation (optional)
• Interdependent temperature and pressure monitoring
• Cycle information recovery in the case of power failure or cycle interruption
• Insufficient water detector with automatic shut-off

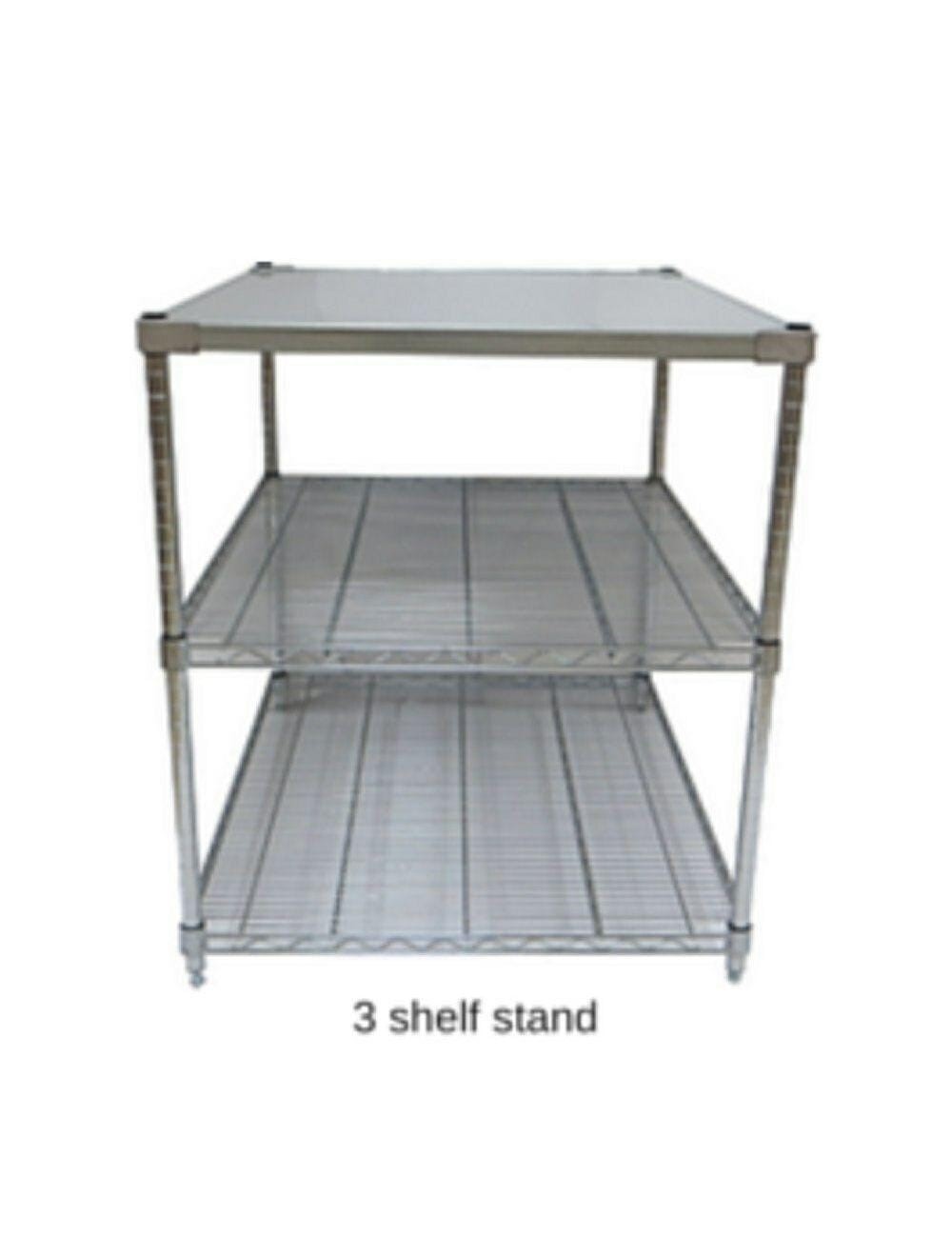

• Supplied with a three shelf stand (30” Wide x 36” Deep x 34” High)
• The optional printer is available.

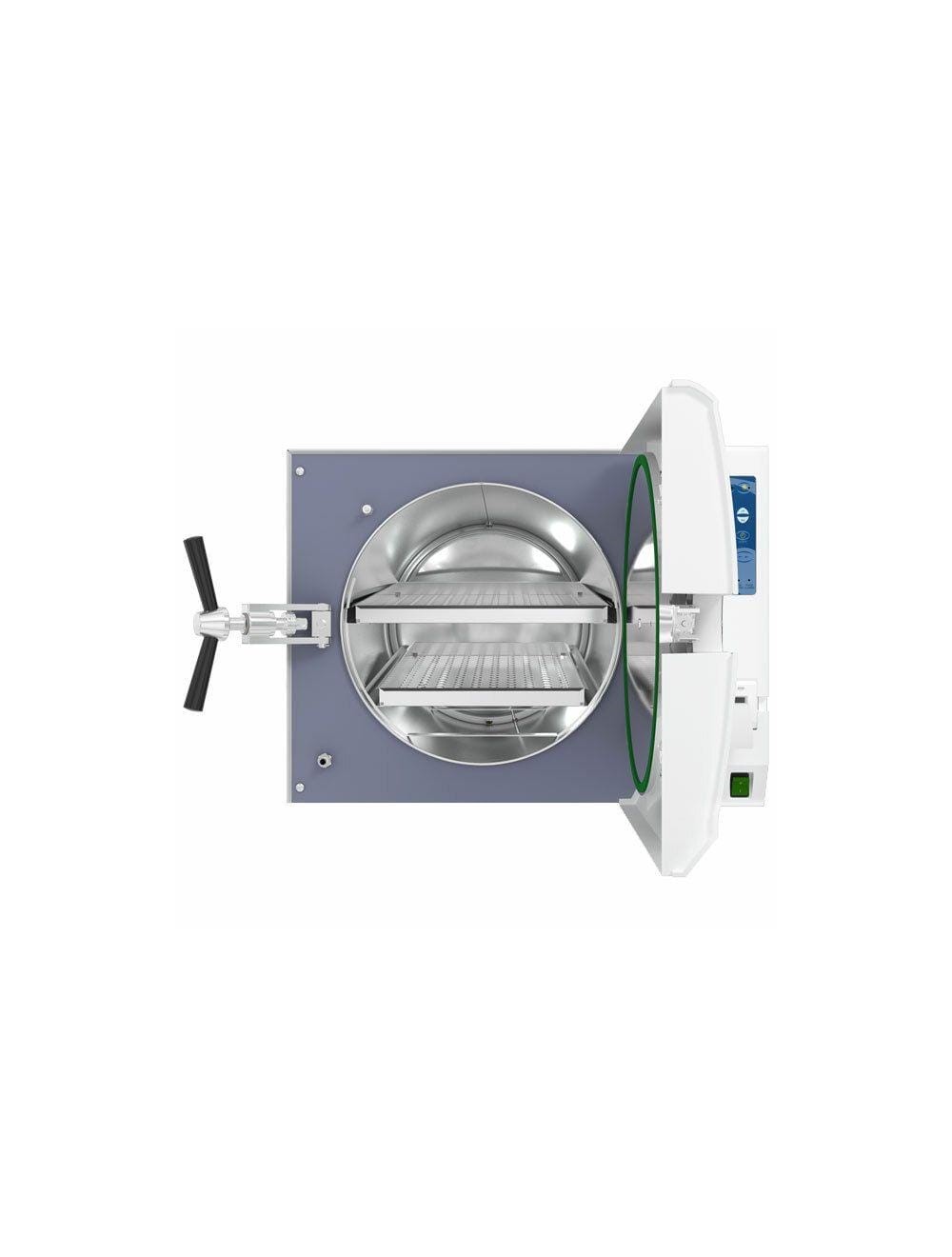

The fully jacketed chamber and doors are constructed from long lasting 316L grade stainless steel material, with superior corrosion resistance.

Specifications

Chamber Dimensions –  Diameter x Length – inches (mm)15′ x 30′ (384 x 760)
Chamber Volume – 22 Gallons – 85 Liters
Overall Footprint  – Depth x Width x Height – inches (mm)34.5′ x 26′ x 20.6′ – (875 x 665 x 525)
Standard Cassettes Capacity 15 Full
Tray Dimensions – inches (mm)26.6′ x 11.3′ x 1′ – (675 x 286 x 25) 26.6′ x 13.8′ x 1′ – (675 x 286 x 25)
Number of Trays – 2
Standard Unwrapped Cycle Time Cold: 32 Min. Hot: 23 Min.
Voltage (V) – Frequency (Hz)230 – 50/60
Power (W) – Current (A)3500W – 13.6A
Autoclave Weight – Lbs. (kg)213 (97)
