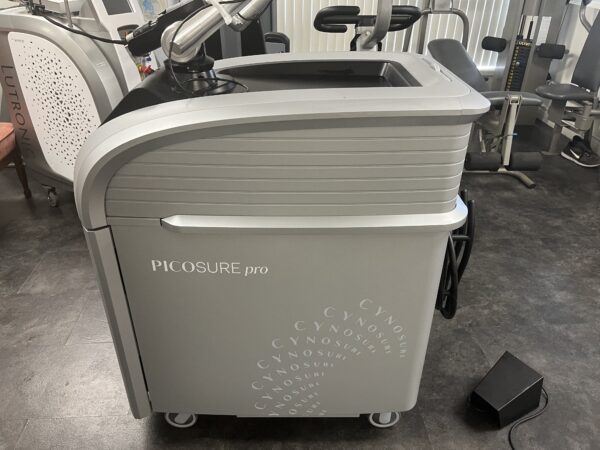

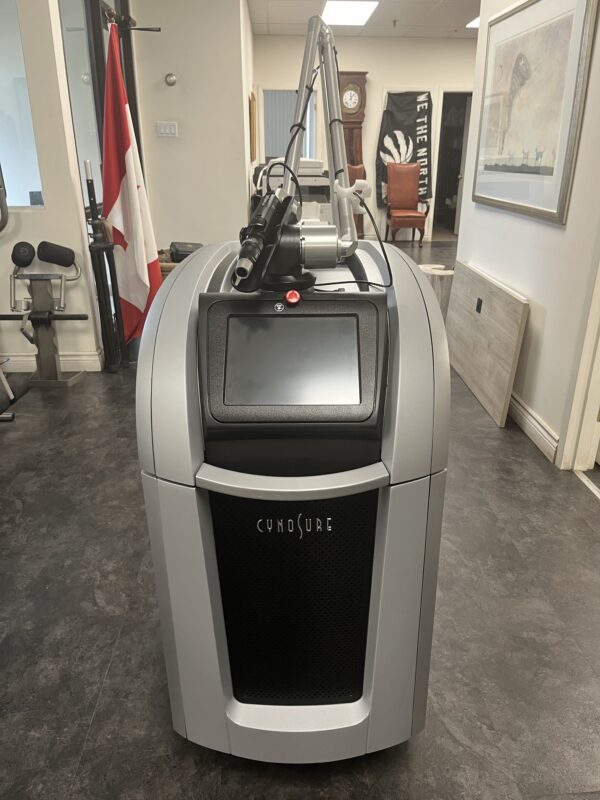

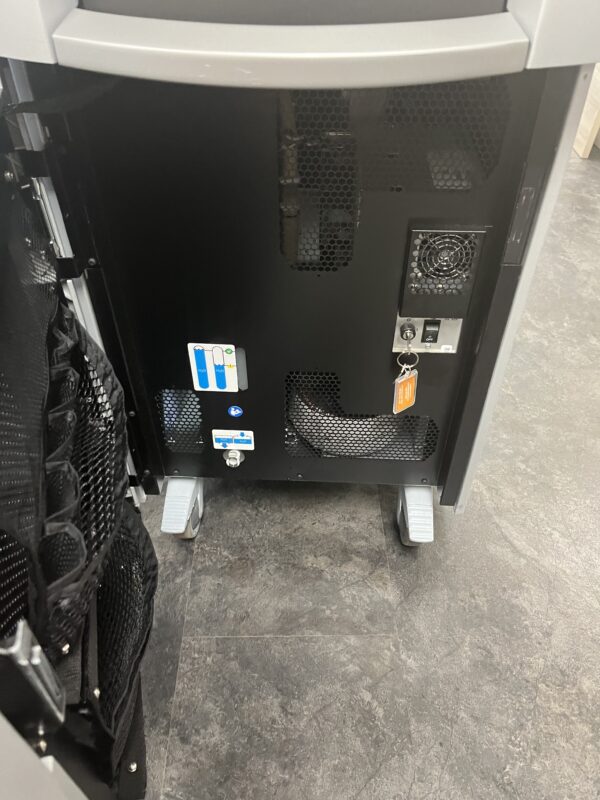

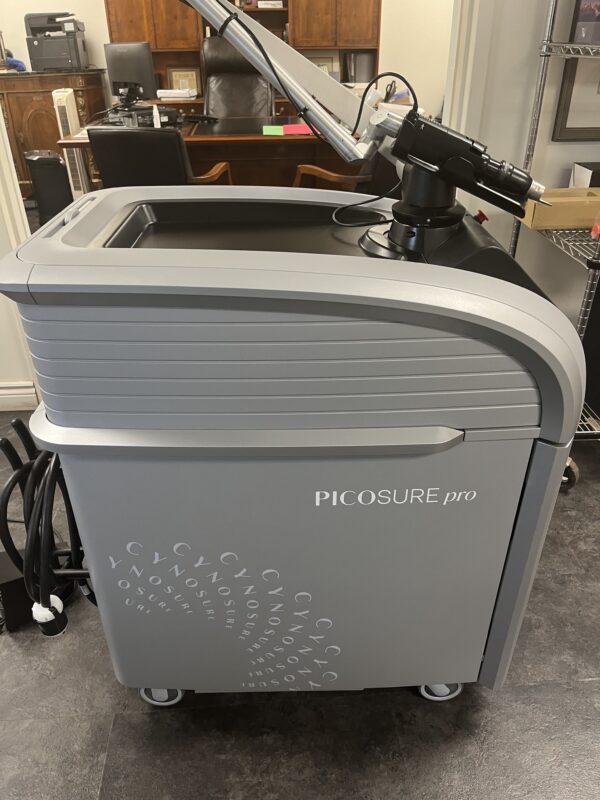

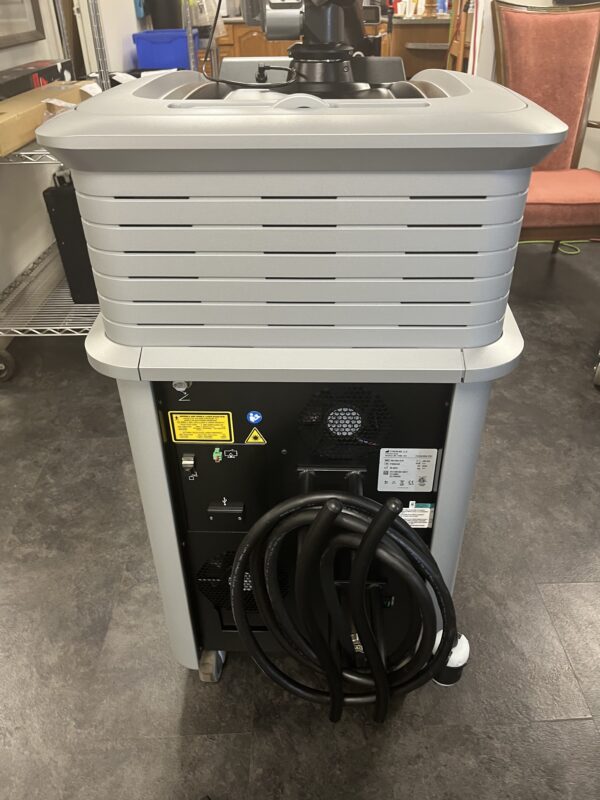

Cynosure Picosure Pro

Description

CYNOSURE PICOSURE PRO

Product Specifications

1. Nominal Wavelength: 755 nm
2. Pulse Duration: 650-750 ps
3. Pulse Energy: 165-200 mJ
4. Spot Sizes: Zoom Handpiece: 2.0-6.0 mm; Fixed Handpiece (with adjustable fluence) 5.00 mm, 6.0 mm, 8.0 mm, & 10.0 mm
5. Optional Wavelength Add On: 532 nm & 1064 nm
6. Electrical Power: 200-240 V, 4.5 kVA, 50/60 Hz, single phase
7. Electrical Service Requirement: 30 Amp

755 nm Applications:

• Tattoo Removal for Skin Types I-IV
• Pigmented Lesion Removal for Skin Types I-IV

• Black, Blue, and Green Tattoo Inks

755 nm with Focus Lens Applications:

• Pigmented Lesion Removal for Skin Types I-IV
• Acne Scars for Skin Types I-IV
• Wrinkles for Skin Types I-IV

532 nm Applications

• Tattoo Removal for Skin Types I-III

• Red, Yellow, and Orange Tattoo Inks

1064 nm Applications

• Tattoo Removal for Skin Types IV-VI

• Black Tattoo Ink

Manufacturer Notes

The World’s 1st 755nm Picosecond Laser

The PicoSure Pro is a laser device that delivers 755 nanometers (nm) of energy in picoseconds, which is one trillionth of a second. The PicoSure Pro’s quick energy delivery minimizes thermal damage to the skin, allowing it to treat a variety of skin concerns with less downtime than traditional lasers.

The PicoSure Pro device delivers 755nm energy in picoseconds; the delivery is so quick that it spares the skin from high thermal damage while optimally targeting unwanted pigment, wrinkles, acne scars and pores with less downtime than traditional lasers.

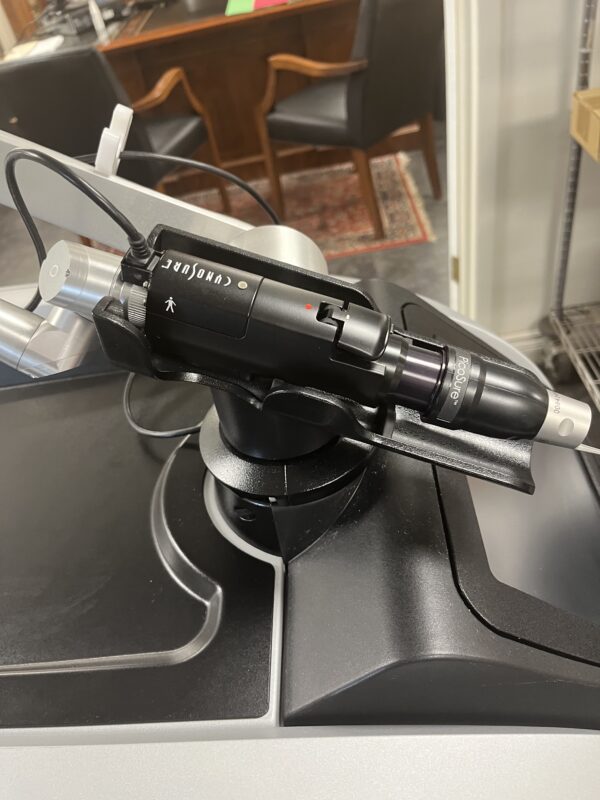

• 1 Zoom handpiece (2-6mm) and 4 fixed handpieces (5, 6, 8, 10mm) with adjustable fluence for customizable treatments
• Platinum Focus lens for unique skin revitalization with no downtime
• Flat lens for treating unwanted pigment in all skin types
• Optional 532nm and 1064nm add on for tattoo removal capabilities

The Power to Transform

With over 1 million treatments performed and 100% patient satisfaction, this has become a popular and trusted treatment worldwide.

• Remove unwanted pigment safely and effectively in all skin types; the only picosecond device FDA-cleared to treat melasma pigment, nevus of Ota and Hori’s nevus
• Reduce wrinkles, fine lines, acne scars and pore size with no downtime
• Improve overall skin tone & texture; providing patients with lighter, brighter and more radiant complexion

Remove Unwanted Tattoos

The PicoSure Pro laser makes tattoo removal even easier. The 755nm wavelength is able to target black, blue, and green tattoo inks, while the optional 532nm wavelength offers effective treatment of “sunset colors”—red, yellow and orange—which are typically hard to correct. You’ll also be able to:

• Tailor treatments using variable spot sizes
• Use turbo mode to better treat recalcitrant tattoos with shortened pulse width
• Treat black ink in darker skin type patients using the 1064nm delivery

Indicated Uses:

• Tattoo Removal
• Wrinkles
• Acne scars
• Hyperpigmentation
• Uneven skin tone
• Melasma
