Quanta Light 4V Evo Series

Description

LIGHT 4V EVO SERIES

Product Specifications

Laser Type: Multi Wavelength
Laser Classification: Class 4
Aiming Beam: White Light/Class 3R
Mains: 200-240 Vac; 50/60 Hz; 3.7 kVA
Mode of Operation: Continuous
Fuse: Circuit Breaker 16A
Dimension: 530 (W) x 1043 (D) x 1060 (H) mm
Weight: 150 kg
Device Cooling System: Closed water circuit/water air exchanger
Skin Cooling System: Integrated contact cooling (optional), Air cooling (optional)
Beam Delivery: Optical fiber for pulsed lasers; Articulated arm for Q-Switched lasers
Aiming Beam: White light for the Optical Fiber (excep for Ligh 4V and for Light A Star + 1320); Class 3R less than 4mW @635nm for the Articulated Arm, for Light 4F and Light A Start + 1320)

Wavelengths Available:

• Pulsed Laser: Nd Yag 1064nm, Nd Yag 532nm, Nd Yag 1320nm, Alex 755nm (Light), Alex 755nm (Domino)
• Q-Switched: QS Nd Yag 1064nm, QS Nd Yag 532nm, QS Ruby 694nm
• Photo-Thermal: PT Nd Yag 1064nm, PT Ruby 694nm

Nd YAG 1064nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 2-5, 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 300; Rep. Rate (Hz): 1 – 10; Exposure Time (s): 0.003; Divergence (mrad): 14; MPE (J/m2): 0.43; NOHD (m): 216; OD: OD less than 6;

ALEX 755nm: Pulse Width (ms) 0.3 – 300; Burst Mode: Up to 3 pulses T on and T off tunable; Beam Delivery: Optical Fiber with Detachable Handpiece; Spot Sizes (mm) (optional): 6, 8, 10, 12, 14, 16mm; Max Fluence (J/cm2): 60; Rep. Rate (Hz): Up to 10; Exposure Time (s): 0.002; Divergence (mrad): 14; MPE (J/m2): 0.0825; NOHD (m): 404; OD: LB6, OD less than 6;

Manufacturer Notes

The device at a glance

Light – EVO Series is based on solid state Alexandrite or Nd:YAG laser sources with up to four wavelengths: 755 nm, 1064 nm, 532 nm and 1320 nm (optional).
Light Series meets the needs of every operator with multiple treatment possibilities.
The powerful laser sources can be combined to build up to 10 different EVO models for the maximum versatility of use and performance.

The Light EVO Series are sophisticated platform devices with Italian engineering at their core and the versatility to customize pulse-laser specifications and configurations.

• Pulse width: The pulse width can range from 0.3–300 ms

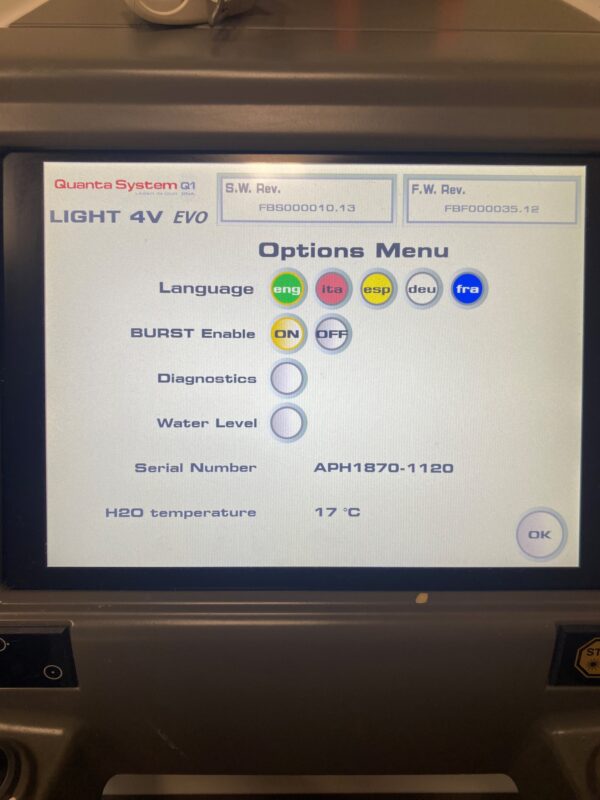

• Burst mode: The Light 4V EVO can have up to three pulses with selectable ton and toff
• Max fluence: The max fluence can range from 500–198 J/cm²
• Repetition rate: The repetition rate can be up to 10 Hz
• Optional spot sizes: The Light 4V EVO has optional spot sizes ranging from 2–16 mm
• Beam delivery: The Light 4V EVO uses optical fiber with detachable handpieces
• Skin cooling system: The Light 4V EVO has a skin cooling system

The Light 4V EVO is a versatile device that can be used for a wide range of applications, including permanent hair reduction, treating vascular lesions, and skin resurfacing.

Multiple wavelength series:

Alex 755 nm for:

• Permanent Hair Reduction up to Skin type III
• Benign Pigmented Lesions

Nd:YAG 1064 nm for:

• Benign Vascular Lesions
• Wrinkles
• Permanent Hair Reduction

Nd:YAG FD 532 nm (optional) for:

• Benign Vascular Lesions
• Benign Pigmented Lesions

Nd:YAG 1320 nm (optional) for:

• Wrinkles
• Fine Lines
• Back and Atrophic Acne Scars

Twain Handpieces

Twain options are IPL or Er:YAG handpieces that can be attached to the TWAIN connector of the device.

Twain IPL* is indicated for:

• Permanent hair reduction
• Dermatological vascular lesions
• Benign pigmented lesions
• Inflammatory acne

* Different ranges of wavelengths are intended for specific indications is indicated for:

• Skin resurfacing
• Treatment of wrinkles
• Epidermal Nevi
• Actinis chelitis
• Keloids
• Verrucae
• Skin tags
• Keratoses
• Scar revision (including acne scars)
• with microbeam handpiece it is indicated for skin resurfacing

Contact Skin Cooler or Air Skin Cryo

Effective skin cooling is essential while using most lasers for skin protection and comfort of the patient.
The integrated contact skin cooler of Light Series can be used with or without a sapphire window at three different target temperature for fine treatments.
The Skin Cryo handpiece adapter, instead, is intended to work in combination with an external compatible air cooling unit to provide a cold air flow designed for the reduction of pain and thermal injury on wide areas.
Lamp 1 Counter (Q-Switched KTP 532nm/1064nm) – Flash Lamp Limit = 1 Million Puleses;
Lamp 2 Counter – Alexandrite 755nm – Flash Lamp Limit = 1 Million Pulses;
Lamp HP Counter – Erbium Yag 2940nm – Flash Lamp Limit = 1 Millions Pulses;
Lamp HP Counter – IPL – Flash Lamp Limit = 30k to 50k Pulses;
