Description
ROHRER SPECTRUM MULTI
WHY THE SPECTRUM?

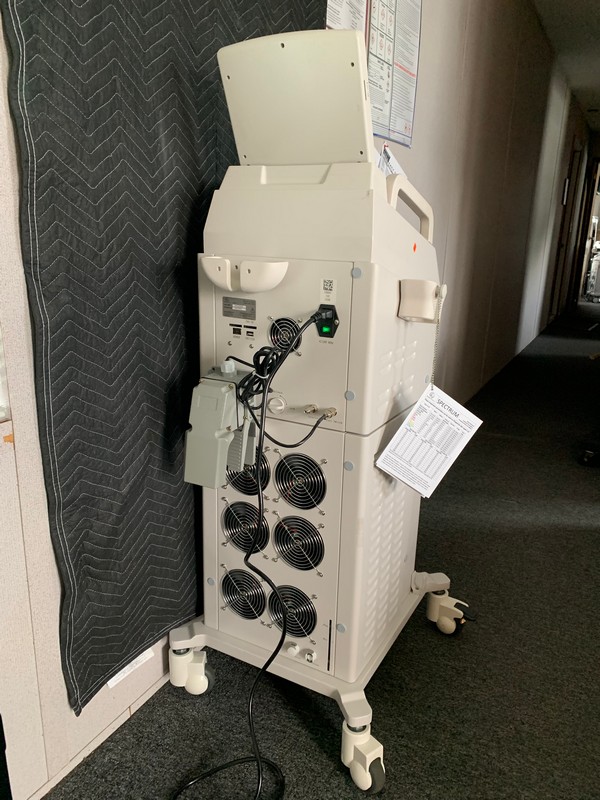

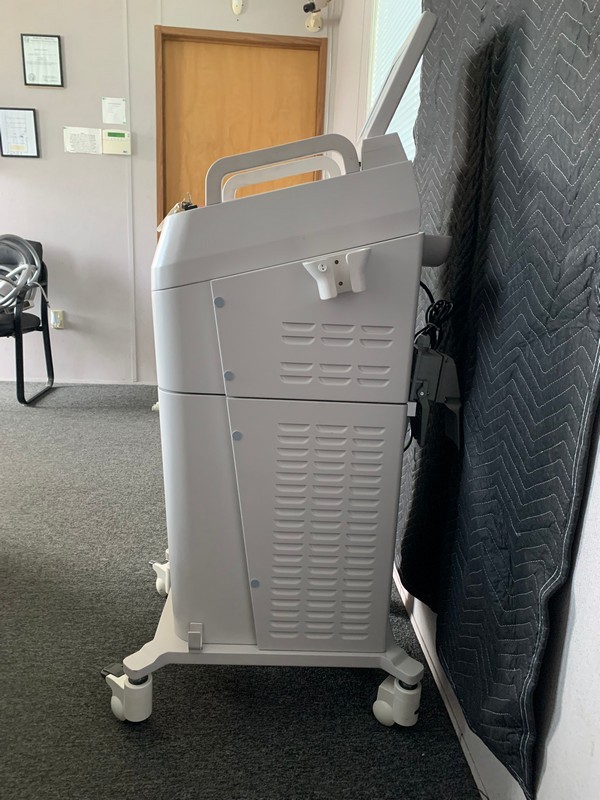

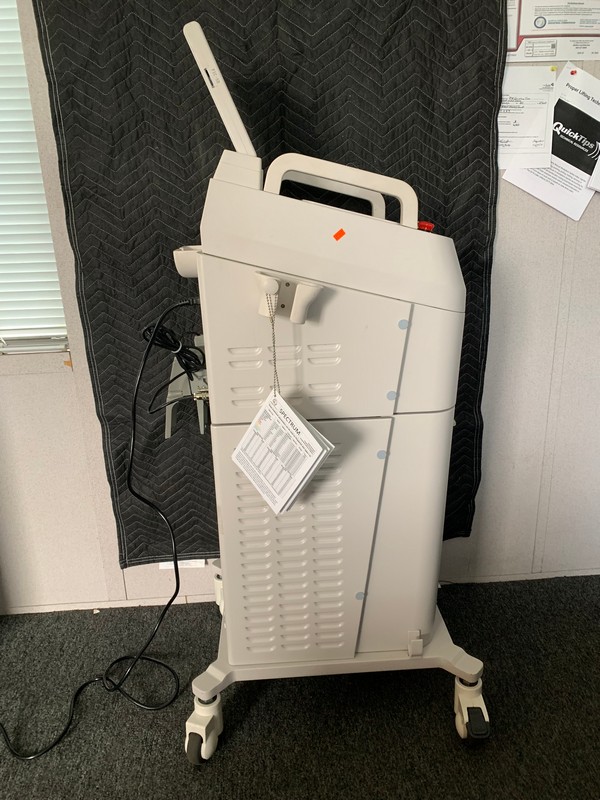

The Spectrum is the ideal Laser/IPL system for sharing or for physicians with multiple locations. The system easily separates into two pieces and can be placed into the trunk or back of an SUV.
Features & Benefits:
- NO Consumables or Disposables

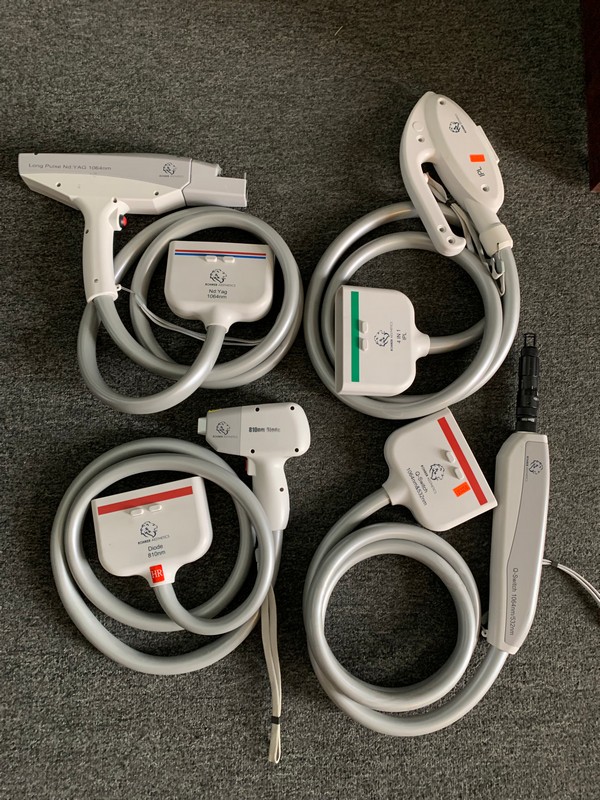

WHAT THE SPECTRUM INCLUDES
810-Diode | Hair Removal
The Spectrum is ideal for laser hair removal with a large spot size, a hertz rate capable of up to ten pulses per second, and built-in contact cooling.
Intense Pulsed Light
The intense pulsed light (IPL) has four filters that technicians can utilize for various non-abrasive procedures, including acne reduction, vascular and pigmented lesions removal, and hair reduction.
Q-Switched Yag/KTP | Tattoo Removal
The spectrum includes a laser tattoo removal device known as the Q-Switched Yag/KTP laser. The Q-switched Yag laser uses dual wavelengths (1064nm/532nm) to remove a vast range of tattoo pigments.
Long Pulsed Yag | Vascular Reduction
The Long Pulse Yag Laser reduces vascular lesions, commonly known as spider veins, by using energy to heat, damage, and collapse targeted blood vessels. Technicians can also utilize the Long Pulse Yag to remove different types of vascular lesions, including cherry angioma.
Erbium Yag | Skin Resurfacing
Erbium is a skin resurfacing procedure for the face, neck, chest, and hands to eliminate surface pigmentation and minimize mild to moderate fine lines and wrinkles. The Erbium treatment requires minimal downtime but helps patients achieve dramatic results.
WHAT OUR CLIENTS HAVE TO SAY
“I have purchased the Phoenix-15 and have nothing but praise for the device. When one looks at the cost, lack of consumables, the ability to treat hands, along with the reliability and dependability of all of Mark Rohrer’s products it was an easy choice to make. I highly recommend this device for anyone entering into the arena of fractionated CO2 laser skin resurfacing.”
Product Specifications
IPL Handpiece Specifications
- Wavelength: 450 to 1200 nm
- Maximum Fluence: 5-40 J/cm2
- Spot Size: 35 x 15 mm
- Repetition Rate: 1 Pulse every 3 seconds
- Cooling: Self-Contained Closed Loop, 0-5 degrees Celsius

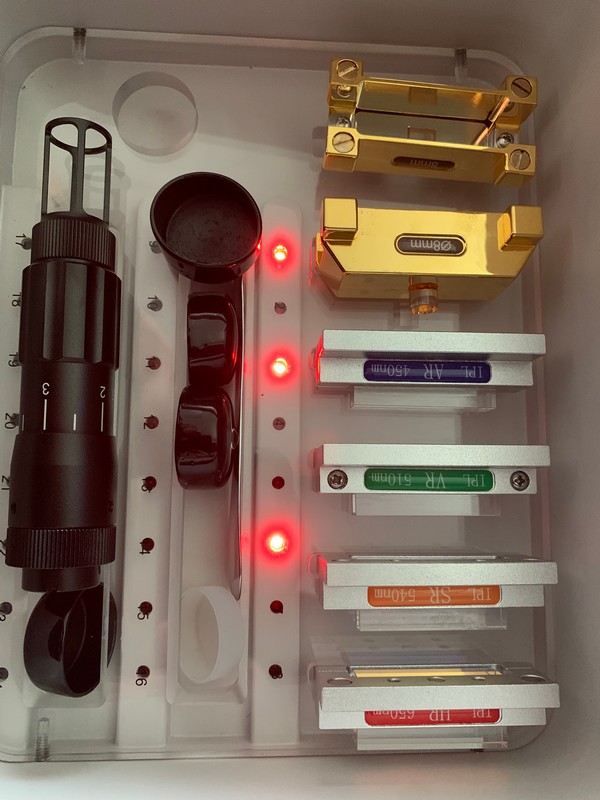

Indicated Uses for 4 Filters:
- 650 nm (HR) for Hair Removal
- 540 nm (SR) Filter for Skin Rejuvenation
- 510 nm (VR) Filter for Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, & Photo Damaged Skin Lesions
- 450 nm (AR) Filter for Acne & Atrophic Acne Scars
Erbium Yag Handpiece (2940 nm) Specifications
- Wavelength: 2940 nm
- Energy: Up to 1000 mJ (1 Joule)
- Max Power: 2.4 Watts
- Pulse Width: 300 microseconds
- Beam Divergence: Collimated
- Spot Size: 1.5 to 6 mm (with zoom lens)
- Application: Laser skin resurfacing, skin ablation and coagulation, wrinkle and scar reduction
1064 Long Pulse Nd Yag Handpiece Specifications
- Wavelength: 1064 nm
- Energy: up to 18 Joules
- Pulse Width: 3 – 10 ms
- Spot Size: 1.5 & 3mm
- Application: Removal of Vascular lesions, Including Cherry Angioma.
Q-Switched Handpiece Specifications
- Wavelength: 1064 nm
- Wavelength KTP Crystal 532nm Converter: 532 nm
- Energy: Up to 1000 mJ
- Maximum Fluence: 12 J/cm2
- Spot Size: 1.5mm, 3mm & 4 mm (with zoom lens)
- Pulse Width: 10 Nano-seconds
- Repetition Rate (Pulse Rate): 1 to 5 Hz
- Application: Tattoo Removal
810 Diode Handpiece Specifications
- Wavelength: 810 nm
- Spot Size: 12mm x 10 mm
- Pulse Width: Adjustabel up to 400ms
- Pulse Rate: 0.5 – 10 Herz (pulses per second)
- Energy Density: 2-120 J/cm2
- Applications: Diode Hair Removal
