ROHRER AESTHETICS SPECTRUM

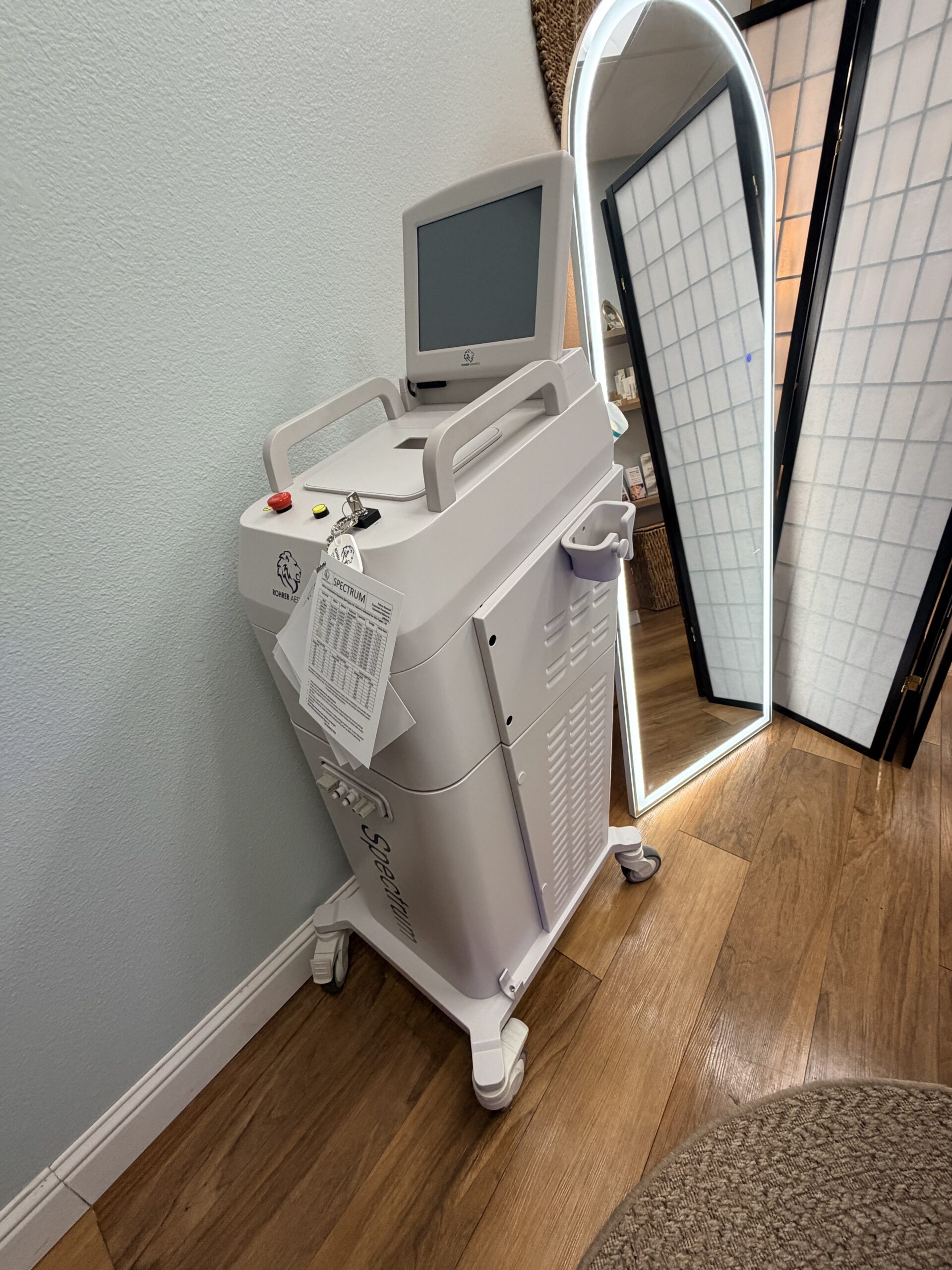

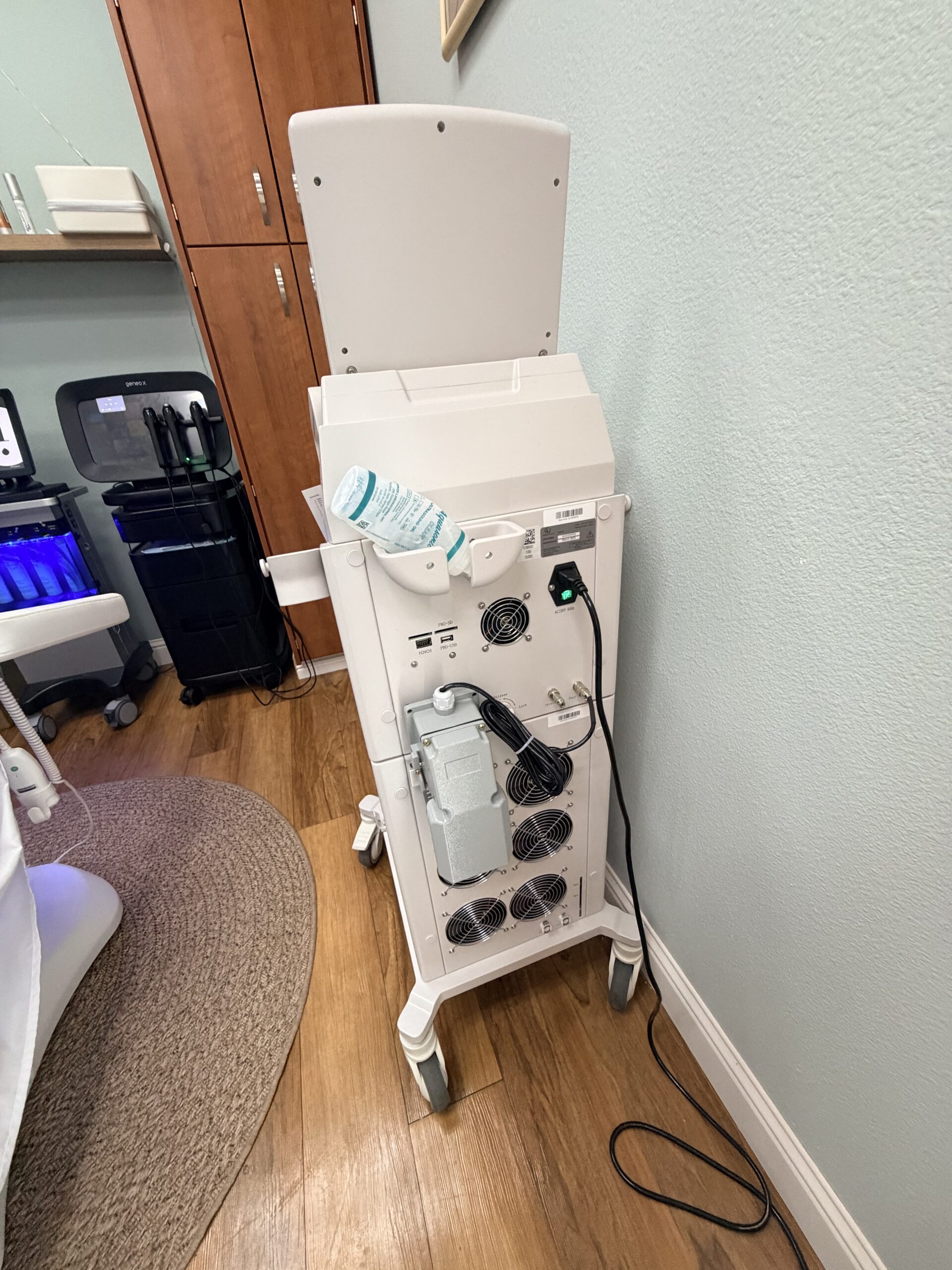

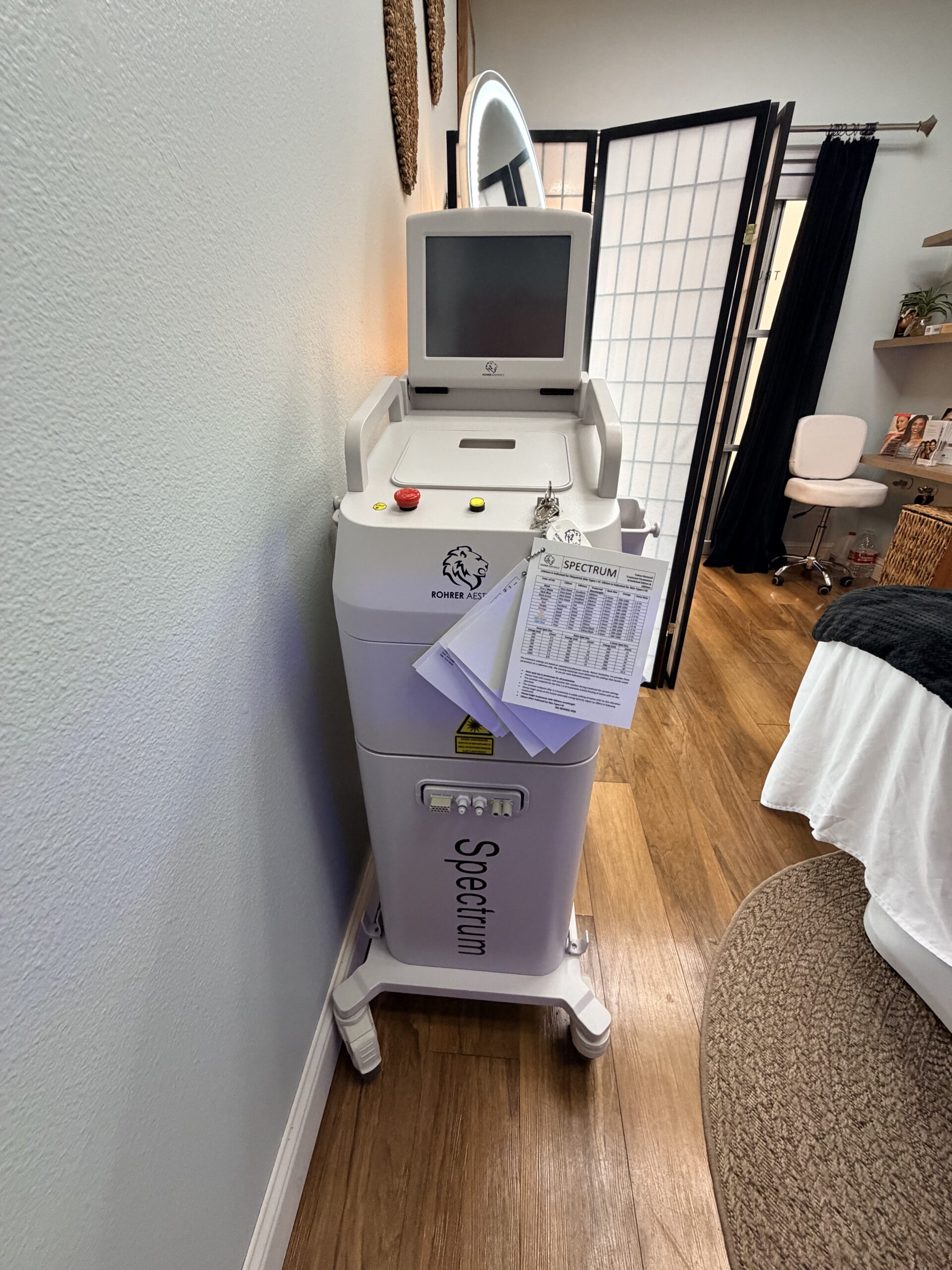

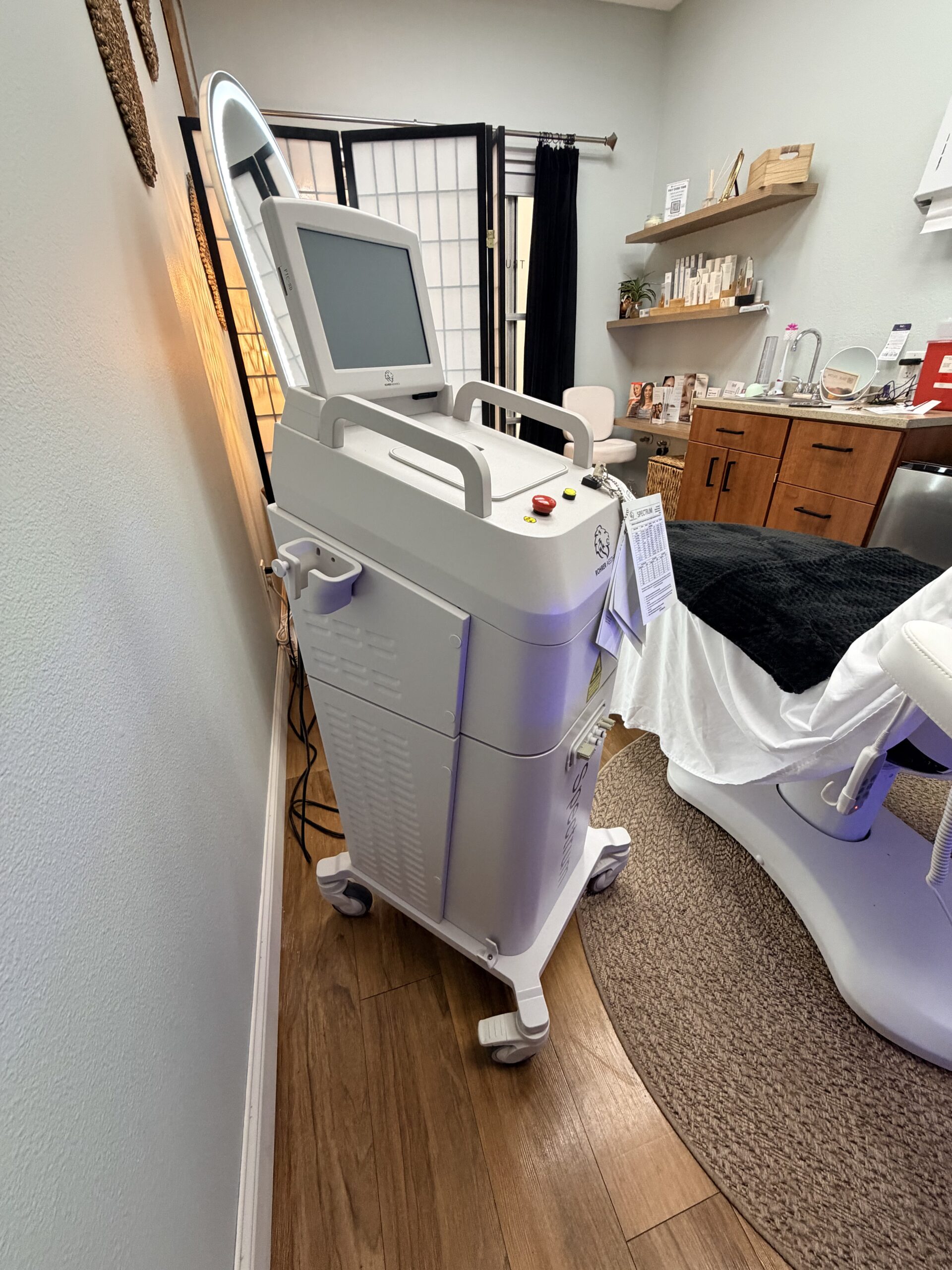

The Rohrer Spectrum is a versatile, multi-modality laser and IPL system designed for practices seeking multiple treatment capabilities in a single, portable platform. With no consumables or disposables, the Spectrum offers a cost-effective solution for hair removal, tattoo removal, vascular treatments, skin resurfacing, and more.
The system’s modular design allows it to separate into two pieces, making it ideal for shared use or multi-location practices.
RECERTIFICATION & CONSUMABLES
Consumables:
None
No disposables
No cartridges
No per-treatment fees
Recertification:
Not required by the manufacturer
Routine preventive maintenance recommended
SYSTEM SPECIFICATIONS
Multi-modality laser & IPL platform
Modular, portable design
Designed for multi-location or shared use
Self-contained cooling systems per handpiece
HANDPIECE SPECIFICATIONS

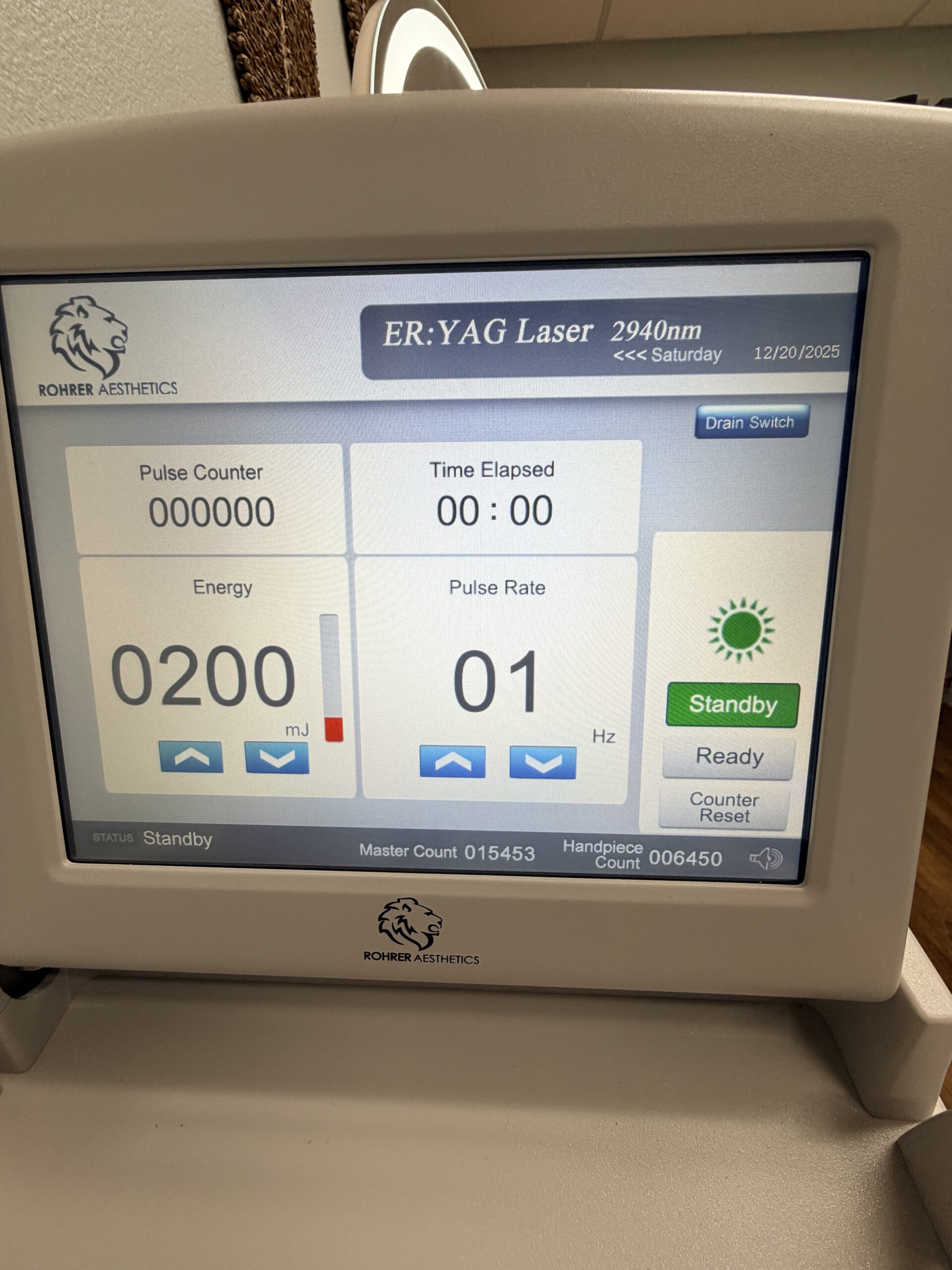

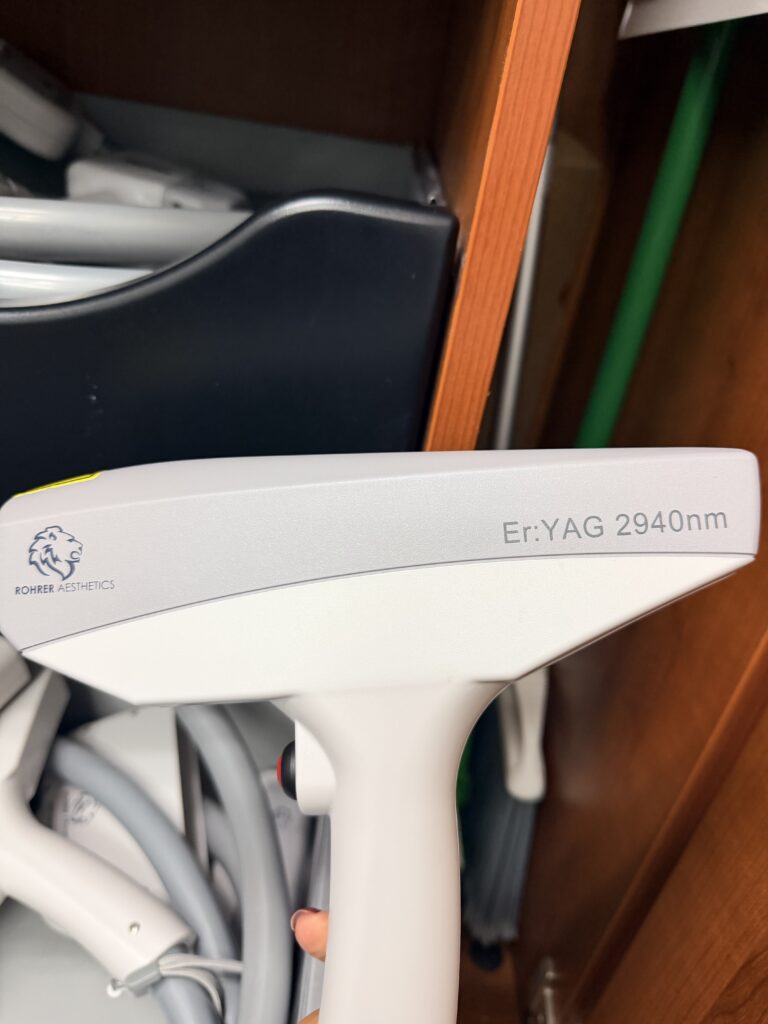

Erbium YAG Handpiece (2940 nm)
- Wavelength: 2940 nm
- Energy: Up to 1000 mJ (1 Joule)
- Maximum Power: 2.4 Watts
- Pulse Width: 300 microseconds
- Beam Divergence: Collimated
- Spot Size: 1.5 – 6 mm (with zoom lens)

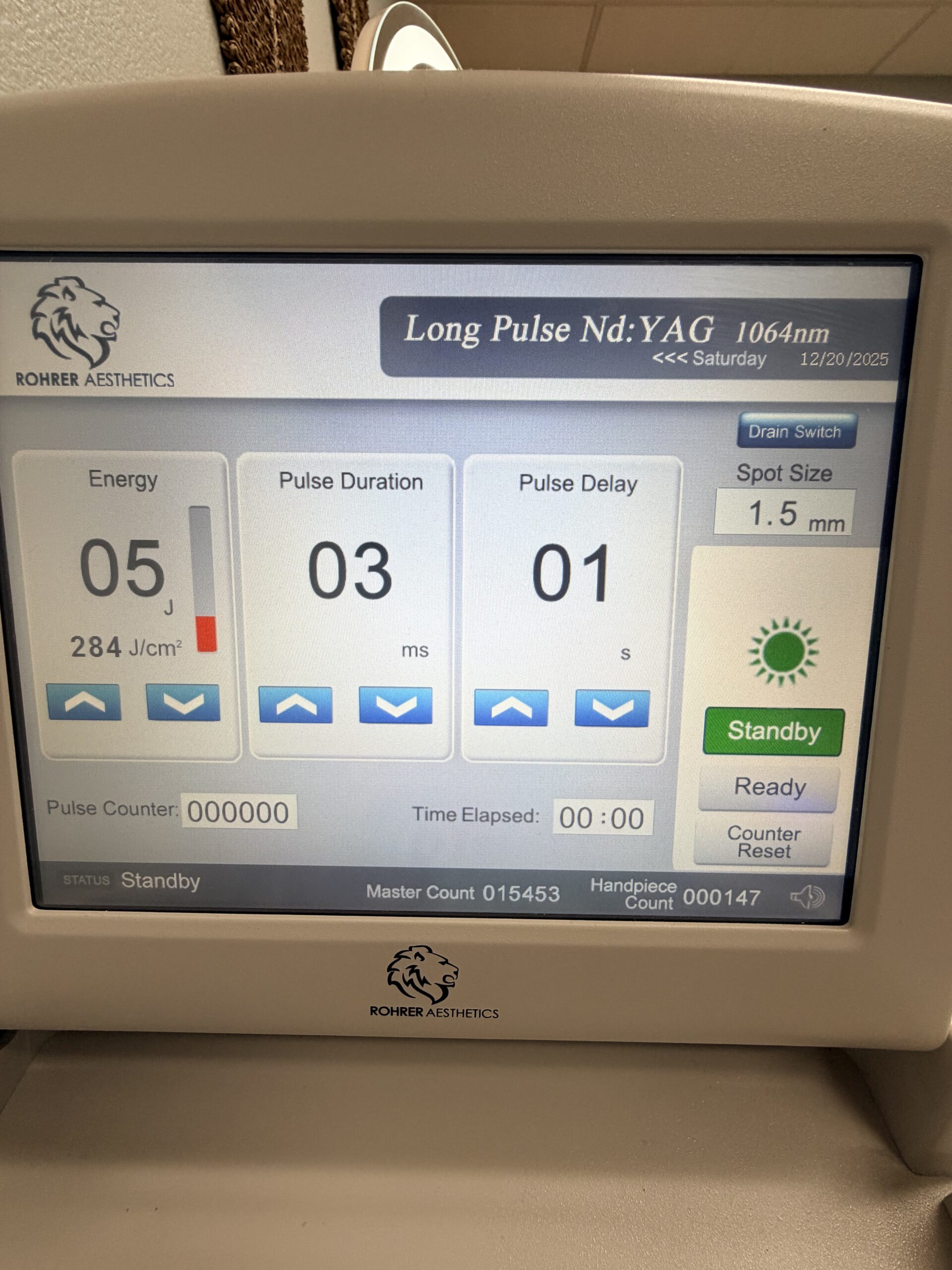

Long Pulse Nd:YAG Handpiece
- Wavelength: 1064 nm
- Energy: Up to 18 Joules
- Pulse Width: 3 – 10 ms
- Spot Sizes: 1.5 mm & 3 mm
Q-Switched Nd:YAG / KTP Handpiece
- Wavelengths: 1064 nm & 532 nm (KTP crystal converter)
- Energy: Up to 1000 mJ
- Maximum Fluence: 12 J/cm²
- Spot Sizes: 1.5 mm, 3 mm, 4 mm (with zoom lens)
- Pulse Width: 10 nanoseconds
- Repetition Rate: 1 – 5 Hz

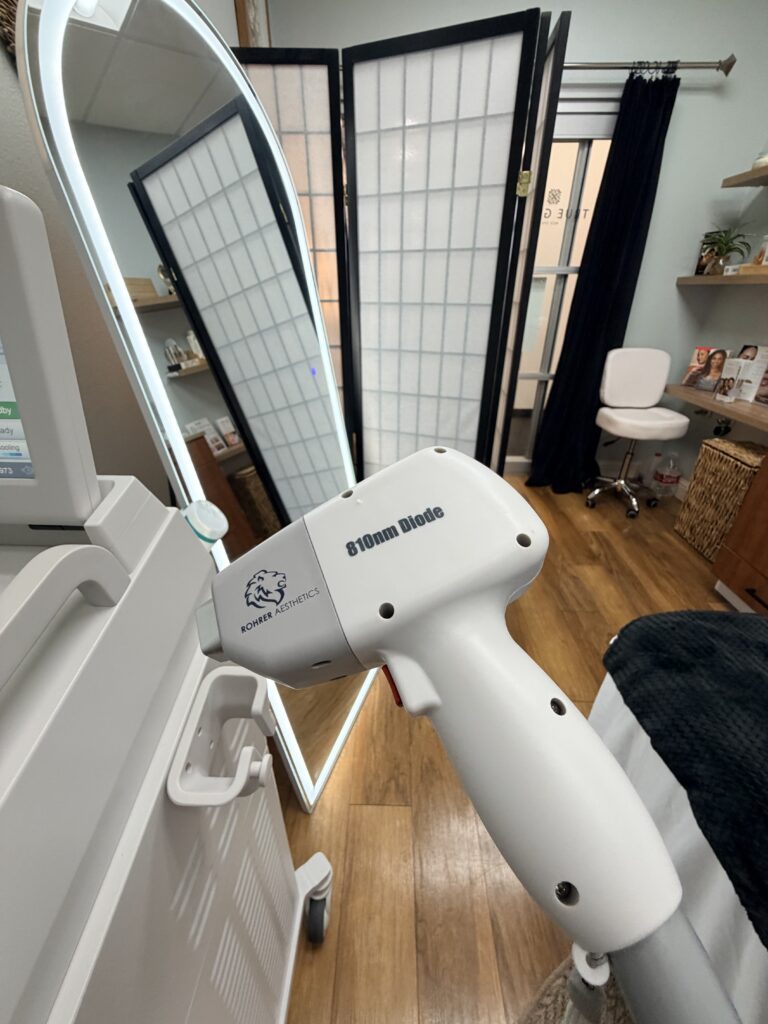

810 Diode Handpiece
- Wavelength: 810 nm
- Spot Size: 12 × 10 mm
- Pulse Width: Adjustable up to 400 ms
- Pulse Rate: 0.5 – 10 Hz
- Energy Density: 2 – 120 J/cm²

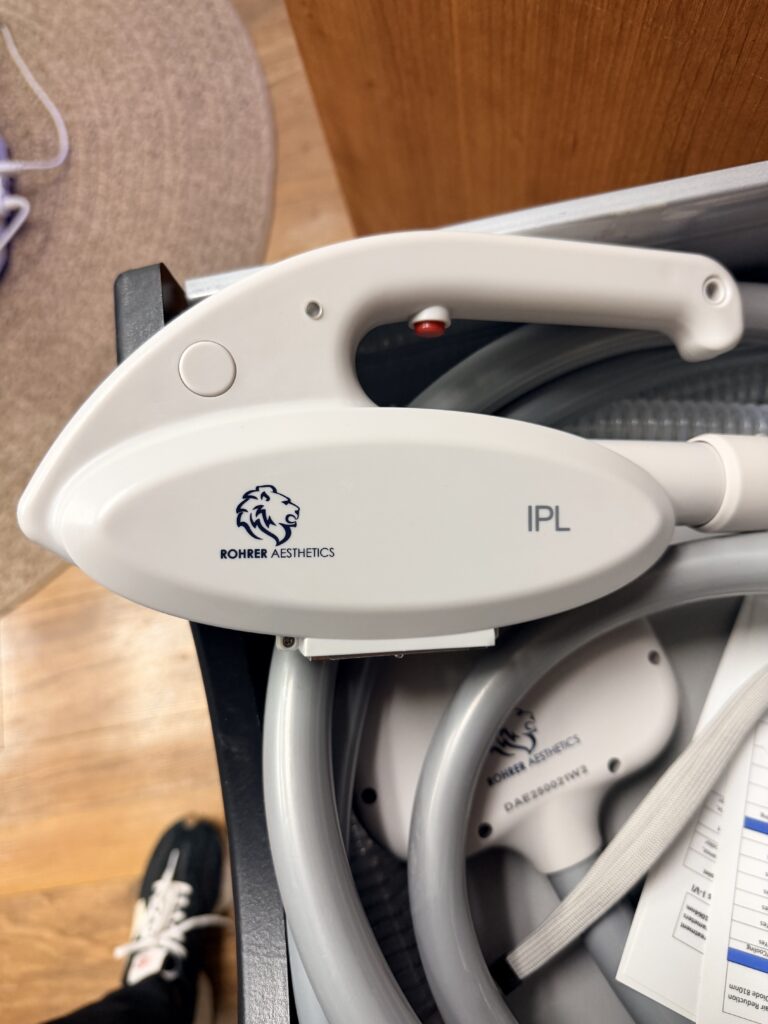

IPL Handpiece
- Wavelength Range: 450–1200 nm
- Fluence: 5–40 J/cm²
- Spot Size: 35 × 15 mm
- Repetition Rate: 1 pulse every 3 seconds
- Cooling: Self-contained closed-loop cooling (0–5°C)

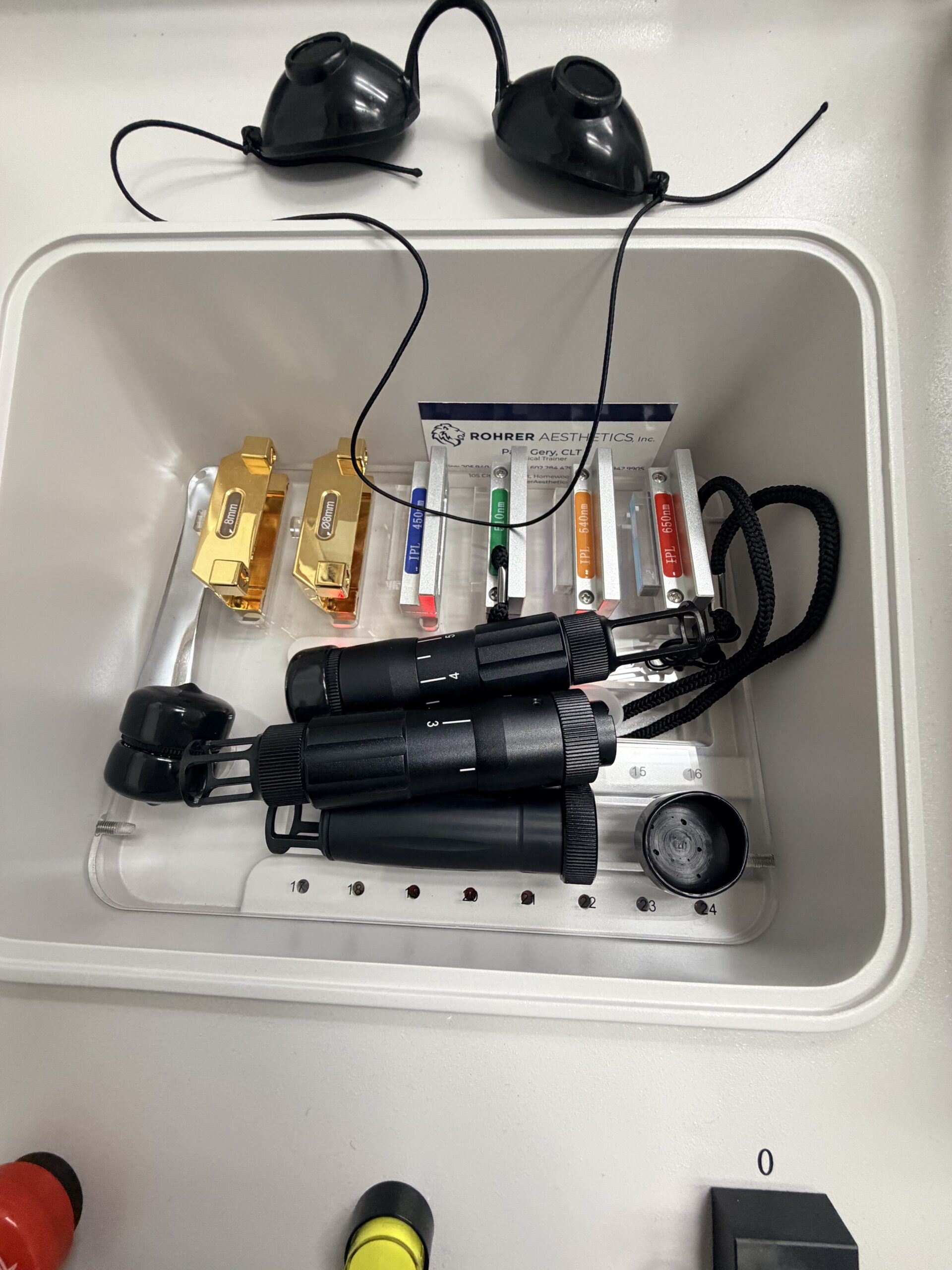

IPL Filters & Indicated Uses:
- 650 nm (HR): Hair Removal
- 540 nm (SR): Skin Rejuvenation
- 510 nm (VR): Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, Photodamaged Skin
- 450 nm (AR): Acne & Atrophic Acne Scars
MANUFACTURER NOTES
Why the Spectrum?
The Rohrer Spectrum is ideal for practices looking to maximize treatment options while minimizing overhead. With multiple laser and IPL modalities in one system, no consumables, and a portable design, the Spectrum offers flexibility, reliability, and long-term value.
HANDPIECES & INDICATED USES
Erbium YAG | Skin Resurfacing
Used for resurfacing treatments of the face, neck, chest, and hands to reduce pigmentation, fine lines, wrinkles, and mild scarring with minimal downtime.
Long Pulse Nd:YAG | Vascular Treatments
Used for vascular lesion reduction, including:
Spider veins
Cherry angiomas
Other vascular lesions
Q-Switched Nd:YAG / KTP | Tattoo Removal
Dual wavelengths (1064 nm and 532 nm) allow effective treatment of a wide range of tattoo pigments and ink colors.
810 Diode | Hair Removal
Designed for efficient laser hair removal with a large spot size, high repetition rates, and built-in contact cooling for patient comfort.
Intense Pulsed Light (IPL)
Four interchangeable filters allow treatment of:
• Hair reduction
• Acne
• Vascular lesions
• Pigmented lesions
• Skin rejuvenation
INDICATED USES – ENTIRE SYSTEM
- Laser hair removal
- IPL hair reduction
- Tattoo removal
- Vascular lesion treatment
- Pigmented lesion treatment
- Acne treatment
- Skin rejuvenation
- Skin resurfacing
- Wrinkle and scar reduction
